LG VRF Indoor Units

Features of the LG VRF Indoor Unit (IDU) Multi-V 5 Air Conditioning System:

• High Reliability and Durability: Built with high-quality components for long-term reliability.
• Advanced Control Options: Equipped with individual zone control and central control systems for precise temperature management.
• Automatic Addressing and Error Detection: Simplifies installation and maintenance.
• Wide Operating Temperature Range: Provides reliable cooling and effective heating.
• Integration with Building Management Systems: Facilitates centralized control and monitoring.
• Sustainable and Eco-Friendly: Therefore, it supports sustainable building practices.
• User-Friendly Interfaces: Includes intuitive touch panels and remote-control options.

Ceiling Cassette Type Indoor Units:

Indoor cassette-type appliances come in four varieties: the Round Cassette, the 4 Way Cassette, the 2 Way Cassette, and the 1 Way Cassette.

ROUND CASSETTE:

It has 7.1 Kw (2 TR), 10.6 Kw (3 TR), and 14.1 Kw (4 TR) (translates to 24k, 36k, and 48k Btu/h respectively). This cooling system has a round shape, natural airflow, and 6-speed precise control technology. Providing comfortable cooling with a 30% faster temperature reach. The round cassette indoor unit with sleek, round design complements the interiors of a building or home.

4 Way Cassette (570 x 570):

For this LG VRF system, body dimensions (W x H x D) are 570x214x570, and it has a system capacity of 1.5 Kw (0.43 TR), 2.2 Kw (0.63 TR), 2.8 Kw (0.8 TR), 3.6 Kw (1 TR), 4.5 KW (1.3 TR), 5.6 Kw (1.6 TR), and 6.2 Kw (1.8 TR) (or Btu/h of 5k, 7k, 9k, 12k, 15k, 18k, and 21k, approximately).

Energy Monitoring Features:

• 2 Set Points for scheduling.
• Refrigerant Leakage Detection System.
• Group Control for testing.
• Test Runs for cooling and heating.
• Model Information Monitoring.
• 1 Point External Input.
• Filter Sign for remaining time.
• Auto Restart Function.
• Auto Addressing.
• Wi-Fi Ready.

4 Way Cassette (840 x 840):

The Panel Name: PT-MCGW0 / PT-MPGW0 (Designed for Human Detection)

Human Detection Sensor: Saves energy and offers comfortable airflow.

Automatic shutdown: Stops when absence is detected and automatically restarts when someone enters the room.

Independent Vane Operation: Uses separate motors for independent control of all four vanes.

Air Purification: Removes 99.9% of PM 1.0, bacteria, odor, and ultra-fine dust particles for a germ-free environment.

2 WAY CASSETTE:

Each of the four vanes in the 2-way cassette unit can be controlled independently using separate motors. This allows for precise airflow direction in six different steps.

1 WAY CASSETTE:

The installation environment does not affect the 1-way cassette. The 1 Way Cassette is the ideal choice for installation in a compact space due to its 190mm duct size and 132mm height. Simple maintenance is ensured with washable filters. LED indicator with 6 colors is provided that shows the AQI Air Quality Index.

2. Concealed Duct Units:

LG VRF systems offer two duct options for tailored airflow management:

Low Static Duct (LSD):

Perfect for most applications LSD has an easy-to-use remote control that allows for accurate airflow adjustment. Its BLDC motor does not require additional control equipment since it automatically maintains the desired airflow even in the presence of pressure fluctuations. With rear or bottom air intake and the potential for multi-zone comfort with appropriate accessories, LSD offers versatile installation.

High Static:

LG provides High Static Ducts for large ductwork or high-resistance buildings (HSD). For intricate layouts, HSD provides strong airflow, guaranteeing effective temperature management. HSD is still a good choice for standard needs and is flexible enough for a wide range of tasks.

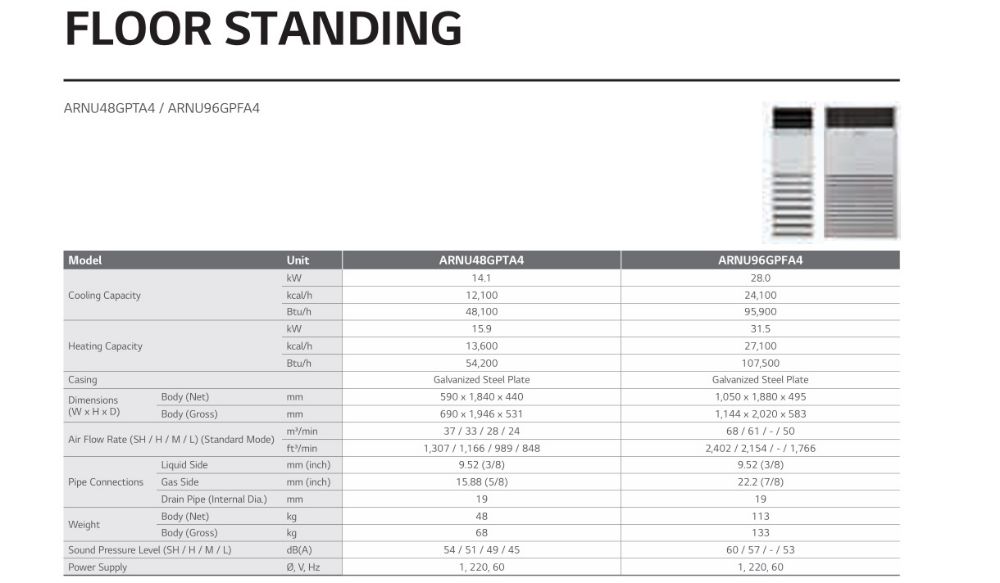

3. Floor-Standing Unit:

Sleek Design: This goes well with many different types of interior decor.

Strong Performance: Effectively heats and cools big areas.

Comfort with a Long Range: Provides powerful airflow for efficient temperature adjustment up to 15 meters away.

4. Ceiling & Floor Units:

The 4th generation Energy Recovery Ventilator with DX Coil comes in 2 types: ERV Without DX Coil and ERV With DX Coil (With Humidifier and Without Humidifier).

• Transforms warm outdoor air into cool indoor air.
• Prevents cold drafts in winter.
• Controls incoming air conditioning for comfortable indoor air.

5. Console units:

• Compact design for easy installation in various interiors.
• Adaptable installation choices for various room configurations.
• Wide airflow range for consistent temperature control and comfort.
• User-friendly controls for easy adjustment.
• LG's smart control systems allow for Smart connectivity.
• Highly Advanced and sophisticated filtration systems for clean indoor air quality.
• Durable construction with high-quality materials.
• Eco-friendly R410A refrigerant for ozone protection and energy efficiency.
• Dehumidification function for optimal indoor humidity levels.
• Auto cleaning function for performance maintenance and lifespan prolongation.

Capacity and Power Specifications:

• 4 HP Console Unit: Heating Capacity: 12.5 kW, 11.2 kW approx.
• 5 HP Console Unit: 16.0 kW, or approximately 14.0 kW of heating capacity.
• 6 HP Console Unit: Heating Capacity: 18.0 kW, 16.0 kW approx.
• 8 HP Console Unit: with a Heating Capacity of 25.0 kW, 22.4 kW approx.
• 10 HP Console Unit: Heating Capacity: 31.5 kW, 28.0 kW approx.
• 12 HP Console Unit: 37.5 kW, or approximately 33.5 kW, of heating capacity.
• 14 HP Console Unit: Heating Capacity: 45.0 kW, 40.0 kW approx.

6. Wall-Mounted Units:

Features:

• Up to 70-degree vertical vane control.
• Includes 6 settings, including full swing.
• The auto-cleaning feature in these wall mounted units prevents mold, bacteria, and odor formation.
• Allows air to flow free from microbes.
• Cooling: Indoor/Outdoor Temp. 27°CDB/19°CWB.
• Heating: Indoor/Outdoor Temp. 20°CDB/15°CWB.
• A standard length of connected pipe with no variance in height.
• Super High mode is available for a maximum of 30 minutes; it auto-shifts to the previous mode for comfort.
• Functions may change due to continuous improvement.

Benefits:

1. Consistent Comfort: Regardless of the outside weather, LG VRF indoor units guarantee a consistent and comfortable atmosphere. By uniformly distributing conditioned air throughout the room, variable refrigerant flow technology preserves the temperature you've set.

2. Energy Savings: Compared to conventional HVAC systems, LG VRF systems are incredibly energy-efficient, which results in considerable cost savings on your energy bills. By reducing wear and tear even further, inverter technology lowers maintenance expenses and lengthens the unit's lifespan.

3. Better Air Quality: A lot of LG VRF indoor units have sophisticated filtering mechanisms that get rid of dust, bacteria, and allergies, making the inside air healthier.

4. Design Flexibility: LG provides a large range of indoor unit types to meet every practical and aesthetic requirement. Because of this flexibility, you may select a unit that both fits your unique comfort needs and matches your surroundings.

How to Set Up an Indoor LG VRF Unit:

1. Planning Before Installation:

Choose Unit Sites: When choosing indoor unit sites, pay close attention to the layout of the space, the requirements for heating and cooling,  the ease of maintenance, and adequate ventilation.

2. The Installation Procedure:

Observe the instructions specific to the model: Consult the installation handbook of your particular indoor unit model of LG VRF AC. This often means attaching the unit to a wall, ceiling, or floor bracket and connecting it to the outdoor unit.

3. Connections for Refrigerant Lines:

Connect the refrigerant lines carefully. Verify the safety and leak-free reliability of the connections made between the indoor and outdoor equipment. Adequate insulation minimizes condensation and energy loss.

4. Electrical Connections:

Wire following the diagram: To connect the device to the electrical line, refer to the included wiring layout. Verify if every connection complies with the regional electrical codes.

5. Commissioning and Testing:

Verify System Operation: Test the LG VRF system once all connections have been made. Verify the proper refrigerant charge, look for leaks, and make sure the inside unit responds to thermostat controls.

6. Last-minute Modifications:

Optimize Performance: To get the most out of the LG VRF system, make any last-minute modifications. This may involve setting up the smart app and remote control, calibrating the thermostat, and modifying the fan speed.
