Voltas Ductable AC Air-Cooled Packaged Units 5.5 TR, 6 TR, 8.75 TR, 9 TR, 11 TR, 12 TR, 17 TR, 18 TR, 22 TR, 24 Tons (TR)

In a Ductable packaged unit the compressor is part of the indoor unit unlike the conventional ductable split AC units wherein the compressor is part of the outdoor unit. Air-cooled Ductable packaged units by Voltas are available in the capacities of 5.5 Ton (TR), 6 Ton (TR), 8.75 Ton (TR), 9 Ton (TR), 11 Ton (TR), 12 Ton (TR), 17 Ton (TR), 18 Ton (TR), 22 Ton (TR), 24 Ton (TR). One can choose either R22 or R407C as a refrigerant. Hermetic scroll compressor is used in these Air-cooled packaged Voltas Ductable AC units.

Be the first to review this product

Manufacturer: Voltas Limited

SKU: SGL54

Free shipping

Delivery date: 3-5 days

Select the Tons *
Refrigerant Type *

Call for pricing (+91 9650110202)

Technical Data:

The model numbers of R22 Series are:

5.5 TR (ACDPUASC05511), 8.75 TR (ACDPUASC08711), 11 TR (ACDPUASC11021), 17 TR (ACDPUASC17021), 22 TR (ACDPUASC22021).

The model numbers of R407C Series are:

5.5 TR (ACDPUASC05512), 8.75 TR (ACDPUASC08712), 11 TR (ACDPUASC11022), 17 TR (ACDPUASC17022), 22 TR (ACDPUASC22022).

Voltas Ductable AC Air-Cooled Packaged Units R22 and R407C

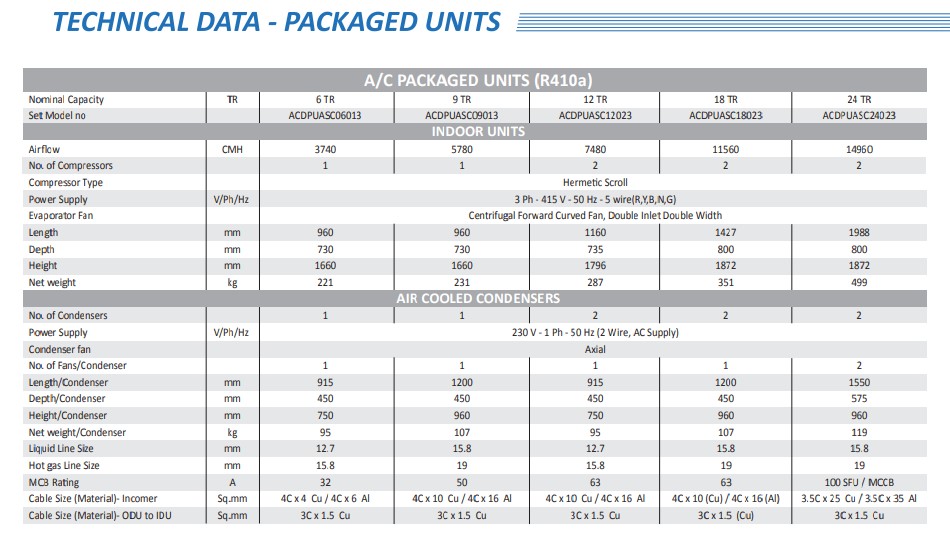

The model numbers of R410A Series are:

6 TR (ACDPUASC06013), 9 TR (ACDPUASC09013), 12 TR (ACDPUASC12023), 18 TR (ACDPUASC18023), 24 TR (ACDPUASC24023).

Voltas Ductable AC Air-Cooled Packaged Units R410A

The power supply for the indoor unit is 3 Ph - 415V - 50 Hz - 5 wire(R,Y,B,N,G). Whereas the power supply for the outdoor unit is 230 V - 1 Ph - 50 Hz (2 Wire, AC Supply).

The evaporator fan type is Centrifugal Forward Curved Fan.

The dimensions of indoor unit are as follows:

5.5 / 6 / 8.75 / 9 TR - Length 960 x Depth 730 x Height 1660

11 / 12 TR - Length 1160 x Depth 735 x Height 1796

17 / 18 TR - Length 1427 x Depth 800 x Height 1872

22 / 24 TR - Length 1988 x Depth 800 x Height 1872

The dimensions of outdoor unit are as follows:

5.5 / 6 / 11 / 12 TR - Length 915 x Depth 450 x Height 750

8.75 / 9 / 17 / 18 TR - Length 1200 x Depth 450 x Height 960

22 / 24 TR - Length 1550 x Depth 575 x Height 960

The size of copper piping that’s needed to connect the outdoor and indoor units are:

5.5 / 6 / 11 / 12 TR - Liquid line 12.7 mm and hot gas line 15.8 mm

8.75 / 9 / 17 / 18 / 22 / 24 TR - Liquid line 15.8 mm and hot gas line 19 mm

The communication wire (copper) that’s needed to connect the outdoor and indoor units is of size 3 C x 1.5 Sq Mm.

Products specifications

Attribute name	Attribute value
Compressor Type	Scroll
